PSMN0R9-30ULDX

Enlarger

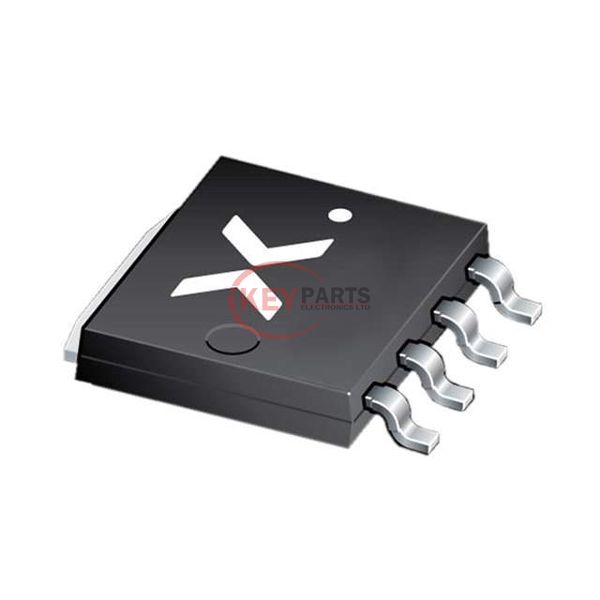

Lmages are for reference only See Product Specitications

Nexperia PSMN0R9-30ULDX

Manufacturer :
Nexperia
Mfr. Part # :
PSMN0R9-30ULDX
Description
MOSFET N-CH 30V 300A LFPAK56
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PSMN0R9-30ULDX PDF
In Stock
390
PSMN0R9-30ULDX Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C300A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.87mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs109 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds7668 pF @ 15 V
FET Feature-
Power Dissipation (Max)227W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK56, Power-SO8
Package / CaseSOT-1023, 4-LFPAK
Request Quote Now
Request Quote Now

We can supply PSMN0R9-30ULDX, use the request quote form to request PSMN0R9-30ULDX pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PSMN0R9-30ULDX. The price and lead time for PSMN0R9-30ULDX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PSMN0R9-30ULDX. We look forward to working with you to establish long-term relations of cooperation.
