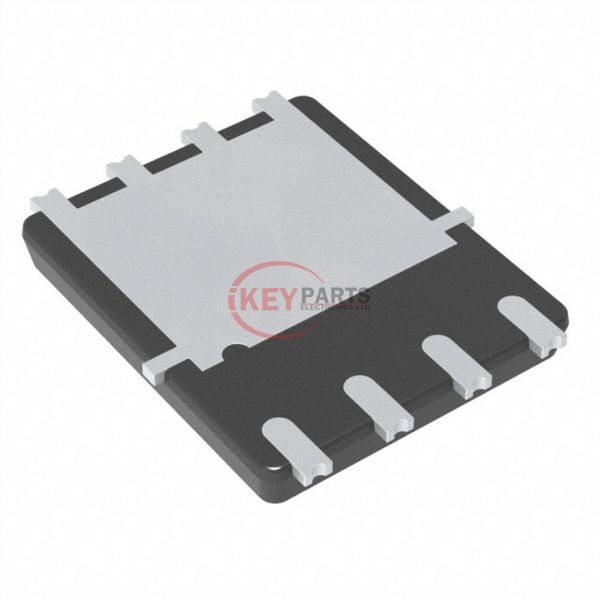

STLD200N4F6AG

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STLD200N4F6AG

Manufacturer :
STMicroelectronics
Mfr. Part # :
STLD200N4F6AG
Description
MOSFET N-CH 40V 120A POWERFLAT
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STLD200N4F6AG PDF
STLD200N4F6AG Tech Specifications
SeriesAutomotive, AEC-Q101, STripFET™ F6
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6.5V, 10V
Rds On (Max) @ Id, Vgs1.5mOhm @ 75A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs172 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds10700 pF @ 10 V
FET Feature-
Power Dissipation (Max)158W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (5x6) Dual Side
Package / Case8-PowerWDFN
Request Quote Now
Request Quote Now

We can supply STLD200N4F6AG, use the request quote form to request STLD200N4F6AG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STLD200N4F6AG. The price and lead time for STLD200N4F6AG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STLD200N4F6AG. We look forward to working with you to establish long-term relations of cooperation.
