AON3402

Enlarger

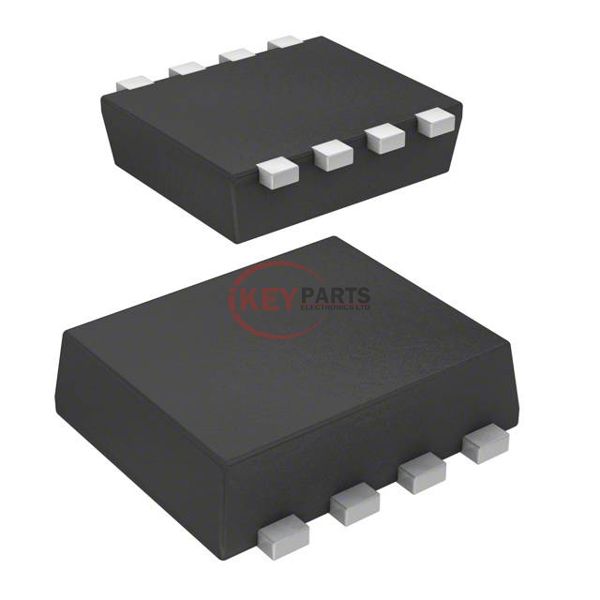

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON3402

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON3402
Description
MOSFET N-CH 20V 12.6A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON3402 PDF
AON3402 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C12.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs13mOhm @ 12A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17.9 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1810 pF @ 10 V
FET Feature-
Power Dissipation (Max)3.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (2.9x2.3)
Package / Case8-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply AON3402, use the request quote form to request AON3402 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON3402. The price and lead time for AON3402 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON3402. We look forward to working with you to establish long-term relations of cooperation.
