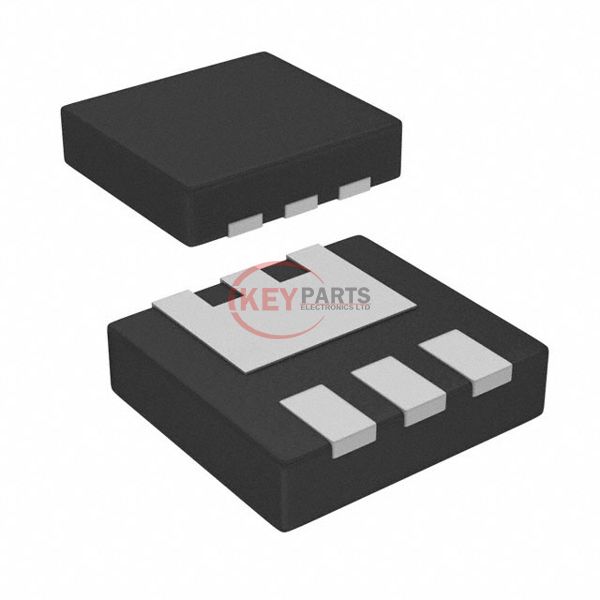

DMP3013SFK-13

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMP3013SFK-13

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMP3013SFK-13
Description
MOSFET P-CH 30V 10.5A 6UDFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMP3013SFK-13 PDF
In Stock
878
DMP3013SFK-13 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C10.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs14mOhm @ 9.5A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs33.7 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds1674 pF @ 15 V
FET Feature-
Power Dissipation (Max)1W (Ta), 19.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageU-DFN2523-6
Package / Case6-PowerUDFN
Request Quote Now
Request Quote Now

We can supply DMP3013SFK-13, use the request quote form to request DMP3013SFK-13 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMP3013SFK-13. The price and lead time for DMP3013SFK-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMP3013SFK-13. We look forward to working with you to establish long-term relations of cooperation.
