PSMN5R9-30YL,115

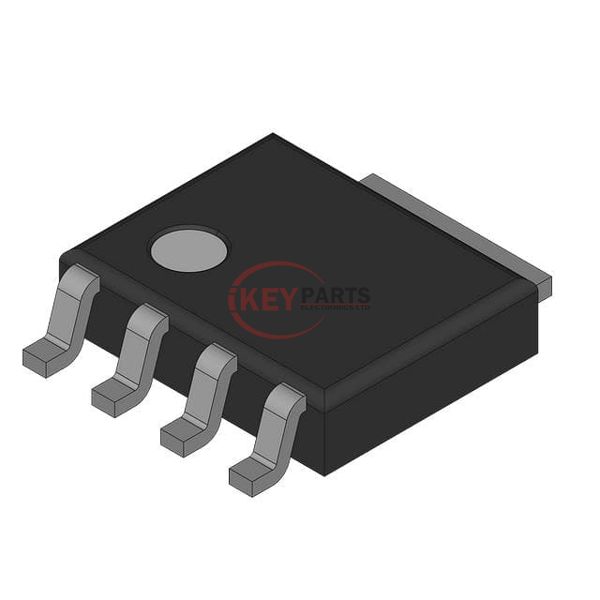

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics PSMN5R9-30YL,115

Manufacturer :
Rochester Electronics
Mfr. Part # :
PSMN5R9-30YL,115
Description
MOSFET N-CH 30V 78A LFPAK56
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PSMN5R9-30YL,115 PDF
In Stock
2429
PSMN5R9-30YL,115 Tech Specifications
SeriesTrenchMOS™
PackageBulk
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C78A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs6.1mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs21.3 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1.226 pF @ 15 V
FET Feature-
Power Dissipation (Max)63W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK56, Power-SO8
Package / CaseSC-100, SOT-669
Request Quote Now
Request Quote Now

We can supply PSMN5R9-30YL,115, use the request quote form to request PSMN5R9-30YL,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PSMN5R9-30YL,115. The price and lead time for PSMN5R9-30YL,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PSMN5R9-30YL,115. We look forward to working with you to establish long-term relations of cooperation.
