NVBLS0D5N04M8TXG

Enlarger

Lmages are for reference only See Product Specitications

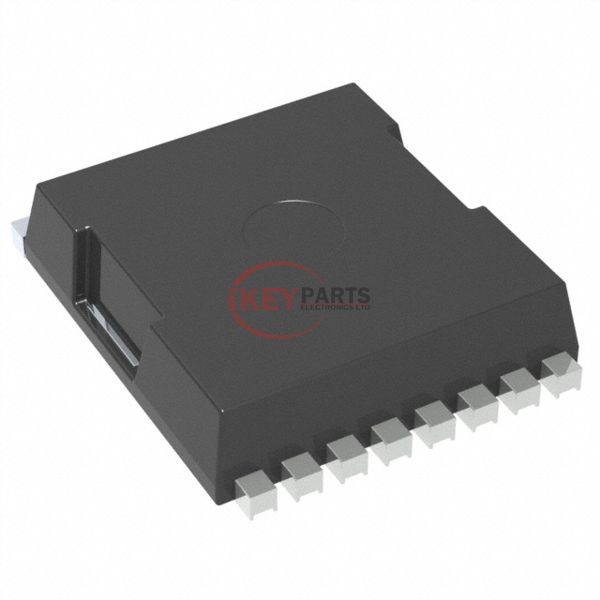

Sanyo Semiconductor/ON Semiconductor NVBLS0D5N04M8TXG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NVBLS0D5N04M8TXG
Description
MOSFET N-CH 40V 300A 8HPSOF
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NVBLS0D5N04M8TXG PDF
In Stock
21142000
NVBLS0D5N04M8TXG Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Tape & Reel (TR)Cut Tape (CT)Cut Tape (CT)
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C300A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs0.57mOhm @ 80A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs296 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds15900 pF @ 25 V
FET Feature-
Power Dissipation (Max)429W (Tj)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-HPSOF
Package / Case8-PowerSFN
Request Quote Now
Request Quote Now

We can supply NVBLS0D5N04M8TXG, use the request quote form to request NVBLS0D5N04M8TXG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NVBLS0D5N04M8TXG. The price and lead time for NVBLS0D5N04M8TXG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NVBLS0D5N04M8TXG. We look forward to working with you to establish long-term relations of cooperation.
