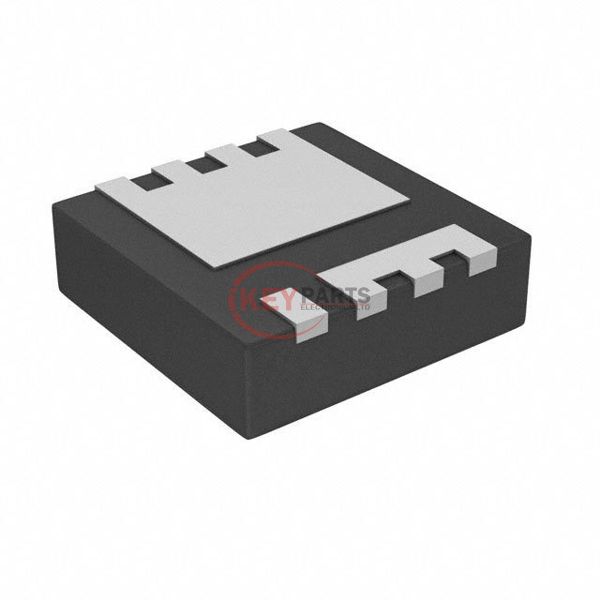

IR (Infineon Technologies) BSZ097N10NS5ATMA1

Manufacturer :: IR (Infineon Technologies)

Mfr. Part # :: BSZ097N10NS5ATMA1

Description: MOSFET N-CH 100V 8A/40A TSDSON

Catalog: Transistors - FETs, MOSFETs - Single

Lead Free Status / RoHS Status: Contains lead / RoHS non-compliant

DataSheet: BSZ097N10NS5ATMA1 PDF

BSZ097N10NS5ATMA1 Tech Specifications

Series		OptiMOS™
Package		Tape & Reel (TR)Cut Tape (CT)
Part Status		Active
FET Type		N-Channel
Technology		MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)		100 V
Current - Continuous Drain (Id) @ 25°C		8A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)		6V, 10V
Rds On (Max) @ Id, Vgs		9.7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id		3.8V @ 36µA
Gate Charge (Qg) (Max) @ Vgs		28 nC @ 10 V
Vgs (Max)		±20V
Input Capacitance (Ciss) (Max) @ Vds		2080 pF @ 50 V
FET Feature		-
Power Dissipation (Max)		2.1W (Ta), 69W (Tc)
Operating Temperature		-55°C ~ 150°C (TJ)
Mounting Type		Surface Mount
Supplier Device Package		PG-TSDSON-8-FL
Package / Case		8-PowerTDFN

Request Quote Now

We can supply BSZ097N10NS5ATMA1, use the request quote form to request BSZ097N10NS5ATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSZ097N10NS5ATMA1. The price and lead time for BSZ097N10NS5ATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSZ097N10NS5ATMA1. We look forward to working with you to establish long-term relations of cooperation.
