BSZ0905PNSATMA1

Enlarger

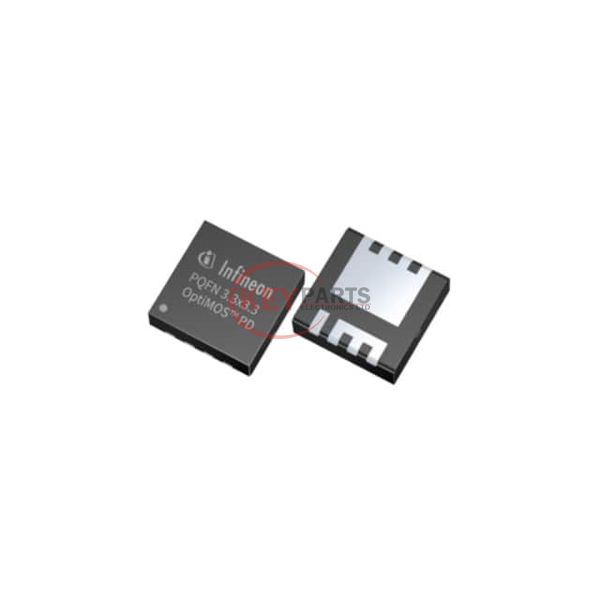

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSZ0905PNSATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSZ0905PNSATMA1
Description
MOSFET P-CH 30V 40A TDSON-8
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSZ0905PNSATMA1 PDF
BSZ0905PNSATMA1 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs8.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id1.9V @ 105µA
Gate Charge (Qg) (Max) @ Vgs43.2 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds3190 pF @ 15 V
FET Feature-
Power Dissipation (Max)69W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply BSZ0905PNSATMA1, use the request quote form to request BSZ0905PNSATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSZ0905PNSATMA1. The price and lead time for BSZ0905PNSATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSZ0905PNSATMA1. We look forward to working with you to establish long-term relations of cooperation.
