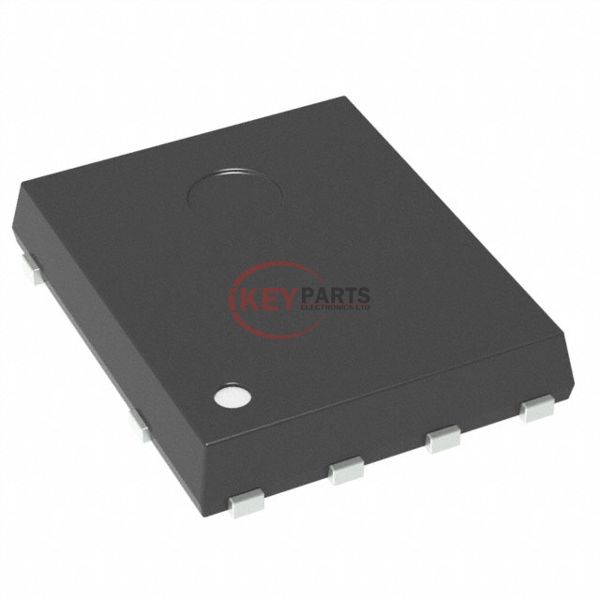

STL4LN80K5

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STL4LN80K5

Manufacturer :
STMicroelectronics
Mfr. Part # :
STL4LN80K5
Description
MOSFET N-CH 800V 3A PWRFLAT VHV
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STL4LN80K5 PDF
STL4LN80K5 Tech Specifications
SeriesMDmesh™ K5
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2.6Ohm @ 1.2A, 10V
Vgs(th) (Max) @ Id5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs4 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds110 pF @ 100 V
FET Feature-
Power Dissipation (Max)38W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (5x6) VHV
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply STL4LN80K5, use the request quote form to request STL4LN80K5 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STL4LN80K5. The price and lead time for STL4LN80K5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STL4LN80K5. We look forward to working with you to establish long-term relations of cooperation.
