NTBG080N120SC1

Enlarger

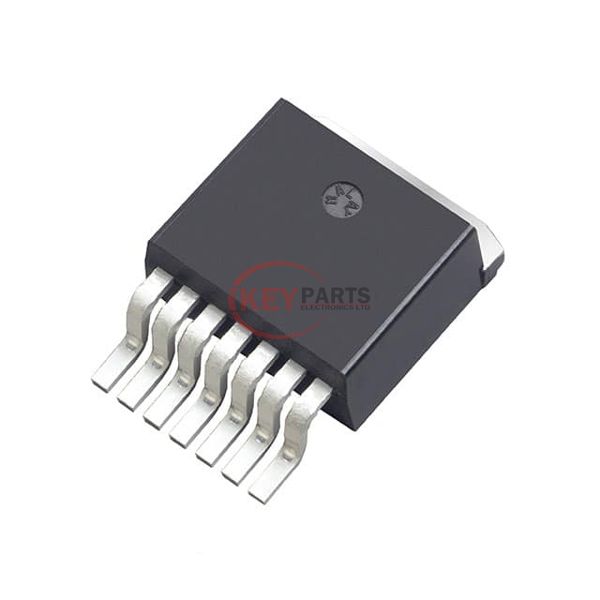

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTBG080N120SC1

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTBG080N120SC1
Description
TRANS SJT N-CH 1200V 30A D2PAK-7
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTBG080N120SC1 PDF
NTBG080N120SC1 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologySiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs110mOhm @ 20A, 20V
Vgs(th) (Max) @ Id4.3V @ 5mA
Gate Charge (Qg) (Max) @ Vgs56 nC @ 20 V
Vgs (Max)+25, -15V
Input Capacitance (Ciss) (Max) @ Vds1154 pF @ 800 V
FET Feature-
Power Dissipation (Max)179W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Request Quote Now
Request Quote Now

We can supply NTBG080N120SC1, use the request quote form to request NTBG080N120SC1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTBG080N120SC1. The price and lead time for NTBG080N120SC1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTBG080N120SC1. We look forward to working with you to establish long-term relations of cooperation.
