TSM70N380CP ROG

Enlarger

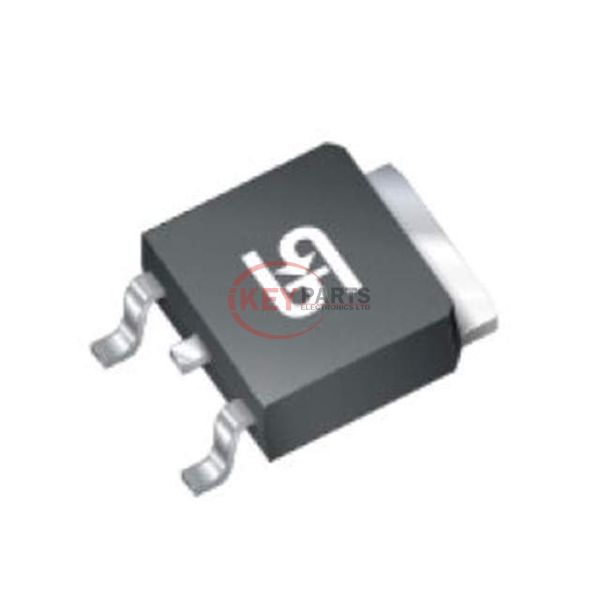

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM70N380CP ROG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM70N380CP ROG
Description
MOSFET N-CHANNEL 700V 11A TO252
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM70N380CP ROG PDF
In Stock
8465
TSM70N380CP ROG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)700 V
Current - Continuous Drain (Id) @ 25°C11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs380mOhm @ 3.3A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18.8 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds981 pF @ 100 V
FET Feature-
Power Dissipation (Max)125W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252, (D-Pak)
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply TSM70N380CP ROG, use the request quote form to request TSM70N380CP ROG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM70N380CP ROG. The price and lead time for TSM70N380CP ROG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM70N380CP ROG. We look forward to working with you to establish long-term relations of cooperation.
