FDP8D5N10C

Enlarger

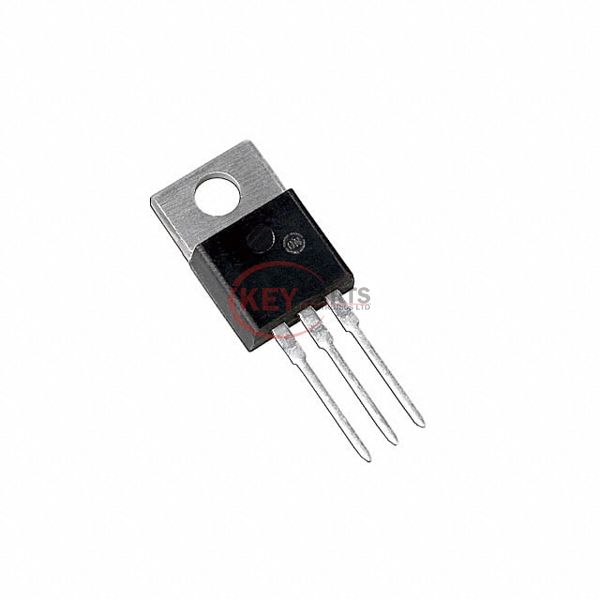

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDP8D5N10C

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDP8D5N10C
Description
MOSFET N-CH 100V 76A TO220-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDP8D5N10C PDF
FDP8D5N10C Tech Specifications
SeriesPowerTrench®
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs8.5mOhm @ 76A, 10V
Vgs(th) (Max) @ Id4V @ 130µA
Gate Charge (Qg) (Max) @ Vgs34 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2475 pF @ 50 V
FET Feature-
Power Dissipation (Max)2.4W (Ta), 107W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220-3
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply FDP8D5N10C, use the request quote form to request FDP8D5N10C pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDP8D5N10C. The price and lead time for FDP8D5N10C depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDP8D5N10C. We look forward to working with you to establish long-term relations of cooperation.
