PSMN5R6-100YSFX

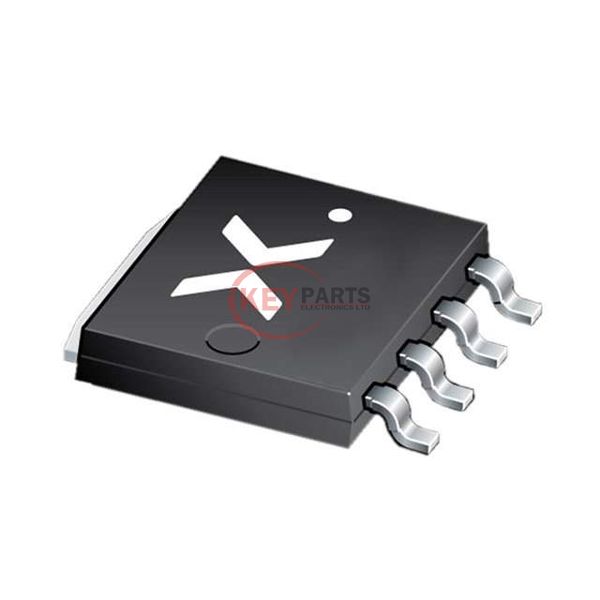

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PSMN5R6-100YSFX

Manufacturer :
Nexperia
Mfr. Part # :
PSMN5R6-100YSFX
Description
MOSFET N-CH 100V 158A LFPAK56
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PSMN5R6-100YSFX PDF
PSMN5R6-100YSFX Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C120A (Tj)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs-
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs63 nC @ 10 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)294W
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK56, Power-SO8
Package / CaseSOT-1023, 4-LFPAK
Request Quote Now
Request Quote Now

We can supply PSMN5R6-100YSFX, use the request quote form to request PSMN5R6-100YSFX pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PSMN5R6-100YSFX. The price and lead time for PSMN5R6-100YSFX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PSMN5R6-100YSFX. We look forward to working with you to establish long-term relations of cooperation.
