CSD25202W15T

Enlarger

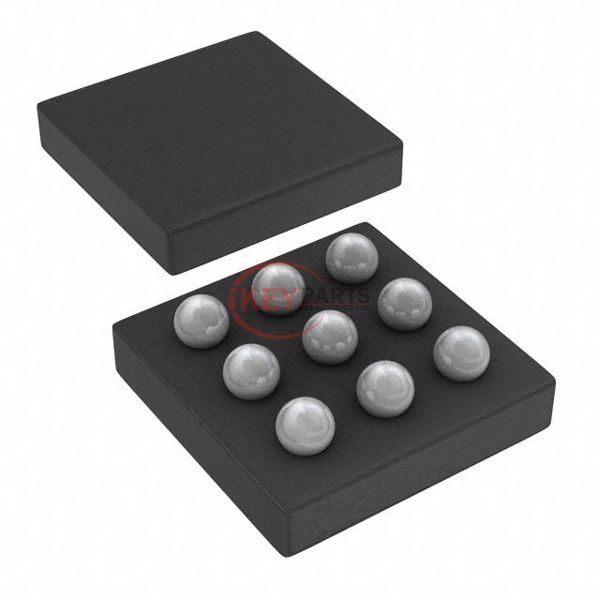

Lmages are for reference only See Product Specitications

Texas Instruments CSD25202W15T

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD25202W15T
Description
MOSFET P-CH 20V 4A 9DSBGA
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD25202W15T PDF
In Stock
1500
CSD25202W15T Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs26mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7.5 nC @ 4.5 V
Vgs (Max)-6V
Input Capacitance (Ciss) (Max) @ Vds1010 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package9-DSBGA
Package / Case9-UFBGA, DSBGA
Request Quote Now
Request Quote Now

We can supply CSD25202W15T, use the request quote form to request CSD25202W15T pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD25202W15T. The price and lead time for CSD25202W15T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD25202W15T. We look forward to working with you to establish long-term relations of cooperation.
