NTLJS17D0P03P8ZTAG

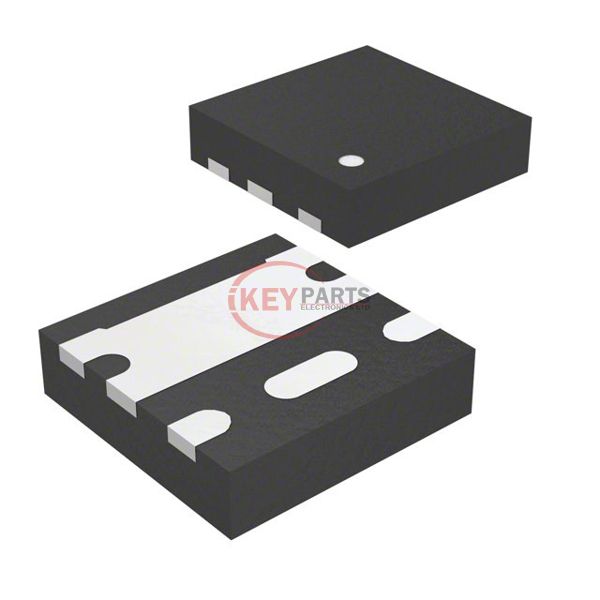

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTLJS17D0P03P8ZTAG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTLJS17D0P03P8ZTAG
Description
MOSFET P-CH 30V 7A 6PQFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTLJS17D0P03P8ZTAG PDF
In Stock
11699
NTLJS17D0P03P8ZTAG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs11.3mOhm @ 10A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs38 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds1600 pF @ 15 V
FET Feature-
Power Dissipation (Max)860mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-PQFN (2x2)
Package / Case6-PowerWDFN
Request Quote Now
Request Quote Now

We can supply NTLJS17D0P03P8ZTAG, use the request quote form to request NTLJS17D0P03P8ZTAG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTLJS17D0P03P8ZTAG. The price and lead time for NTLJS17D0P03P8ZTAG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTLJS17D0P03P8ZTAG. We look forward to working with you to establish long-term relations of cooperation.
