STN4NF20L

Enlarger

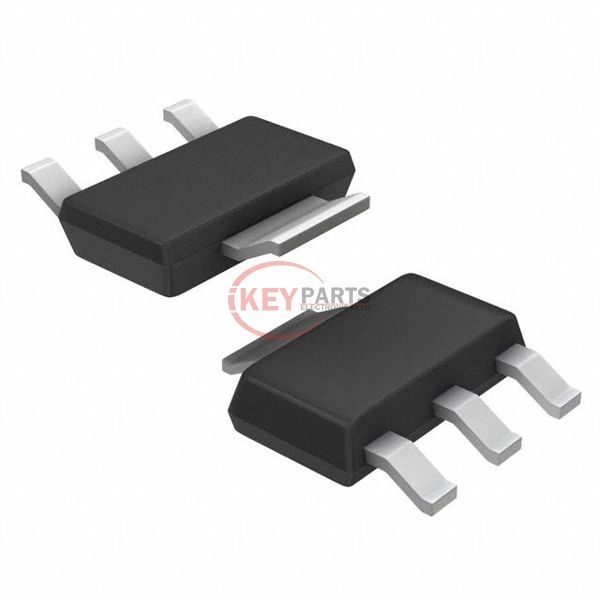

Lmages are for reference only See Product Specitications

STMicroelectronics STN4NF20L

Manufacturer :
STMicroelectronics
Mfr. Part # :
STN4NF20L
Description
MOSFET N-CH 200V 1A SOT-223
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STN4NF20L PDF
In Stock
7621
STN4NF20L Tech Specifications
SeriesSTripFET™ II
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs1.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.9 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds150 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.3W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-223
Package / CaseTO-261-4, TO-261AA
Request Quote Now
Request Quote Now

We can supply STN4NF20L, use the request quote form to request STN4NF20L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STN4NF20L. The price and lead time for STN4NF20L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STN4NF20L. We look forward to working with you to establish long-term relations of cooperation.
