RJK0301DPB-02#J0

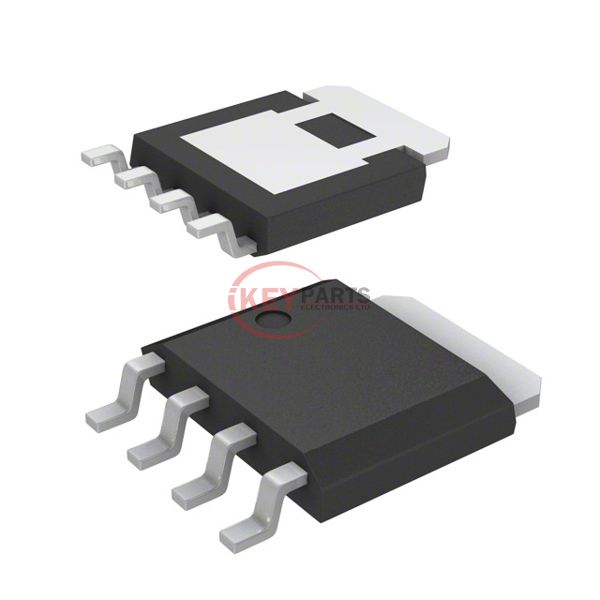

Enlarger

Lmages are for reference only See Product Specitications

Renesas Electronics America RJK0301DPB-02#J0

Manufacturer :
Renesas Electronics America
Mfr. Part # :
RJK0301DPB-02#J0
Description
MOSFET N-CH 30V 60A 5LFPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RJK0301DPB-02#J0 PDF
In Stock
967
RJK0301DPB-02#J0 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C60A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.8mOhm @ 30A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs32 nC @ 4.5 V
Vgs (Max)+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds5000 pF @ 10 V
FET Feature-
Power Dissipation (Max)65W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package5-LFPAK
Package / CaseSC-100, SOT-669
Request Quote Now
Request Quote Now

We can supply RJK0301DPB-02#J0, use the request quote form to request RJK0301DPB-02#J0 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RJK0301DPB-02#J0. The price and lead time for RJK0301DPB-02#J0 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RJK0301DPB-02#J0. We look forward to working with you to establish long-term relations of cooperation.
