IRLML2803TRPBF

Enlarger

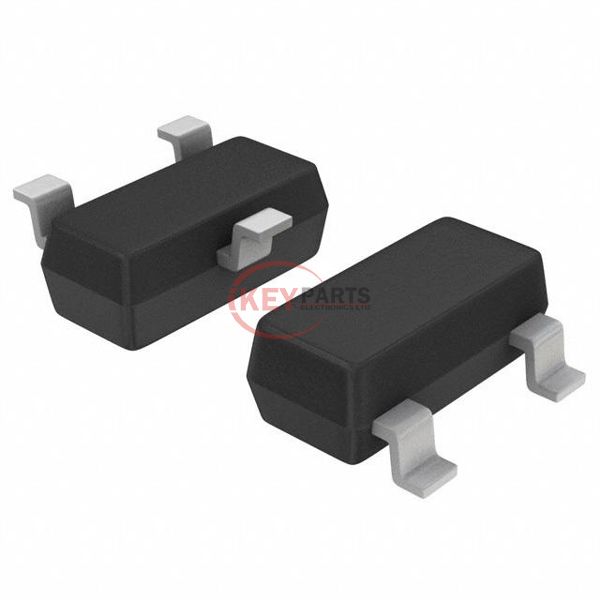

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRLML2803TRPBF

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRLML2803TRPBF
Description
MOSFET N-CH 30V 1.2A SOT23
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRLML2803TRPBF PDF
IRLML2803TRPBF Tech Specifications
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C1.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs250mOhm @ 910mA, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds85 pF @ 25 V
FET Feature-
Power Dissipation (Max)540mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMicro3™/SOT-23
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply IRLML2803TRPBF, use the request quote form to request IRLML2803TRPBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRLML2803TRPBF. The price and lead time for IRLML2803TRPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRLML2803TRPBF. We look forward to working with you to establish long-term relations of cooperation.
