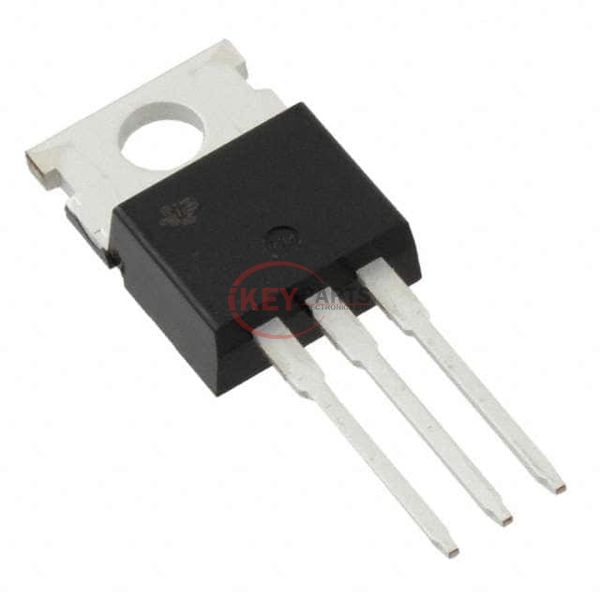

CSD19535KCS

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments CSD19535KCS

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD19535KCS
Description
MOSFET N-CH 100V 150A TO220-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD19535KCS PDF
In Stock
427610000
CSD19535KCS Tech Specifications
SeriesNexFET™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C150A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs3.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id3.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs101 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds7930 pF @ 50 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220-3
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply CSD19535KCS, use the request quote form to request CSD19535KCS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD19535KCS. The price and lead time for CSD19535KCS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD19535KCS. We look forward to working with you to establish long-term relations of cooperation.
