RM2305

Enlarger

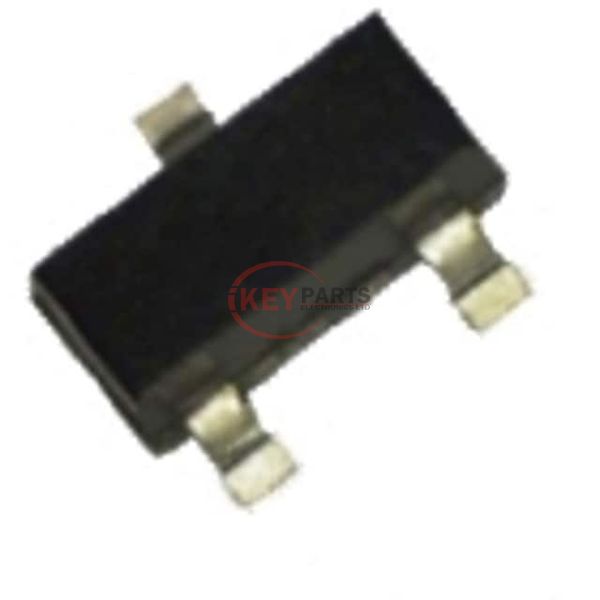

Lmages are for reference only See Product Specitications

Rectron USA RM2305

Manufacturer :
Rectron USA
Mfr. Part # :
RM2305
Description
MOSFET P-CH 20V 3A/4.1A SOT23
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RM2305 PDF
In Stock
211
RM2305 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3A (Ta), 4.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs52mOhm @ 4.1A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds740 pF @ 4 V
FET Feature-
Power Dissipation (Max)1.7W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply RM2305, use the request quote form to request RM2305 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RM2305. The price and lead time for RM2305 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RM2305. We look forward to working with you to establish long-term relations of cooperation.
