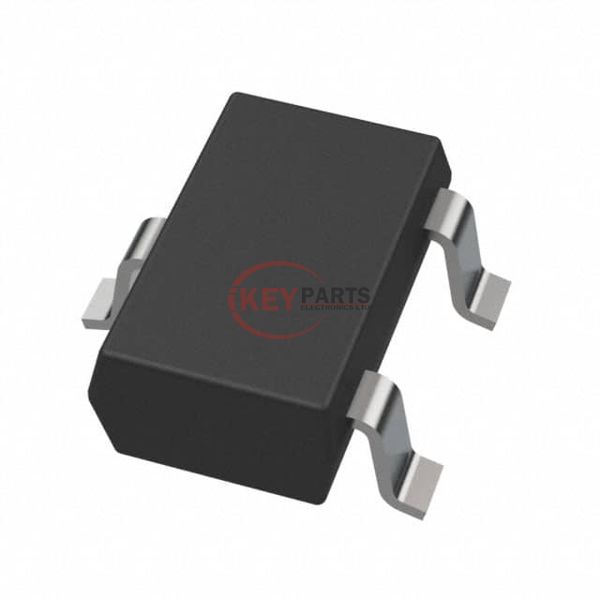

DMN2053UW-7

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMN2053UW-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMN2053UW-7
Description
MOSFET N-CH 20V 2.9A SOT323
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMN2053UW-7 PDF
DMN2053UW-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs56mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.6 nC @ 4.25 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds369 pF @ 10 V
FET Feature-
Power Dissipation (Max)470mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting Type-
Supplier Device Package-
Package / Case-
Request Quote Now
Request Quote Now

We can supply DMN2053UW-7, use the request quote form to request DMN2053UW-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMN2053UW-7. The price and lead time for DMN2053UW-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMN2053UW-7. We look forward to working with you to establish long-term relations of cooperation.
