CSD13306W

Enlarger

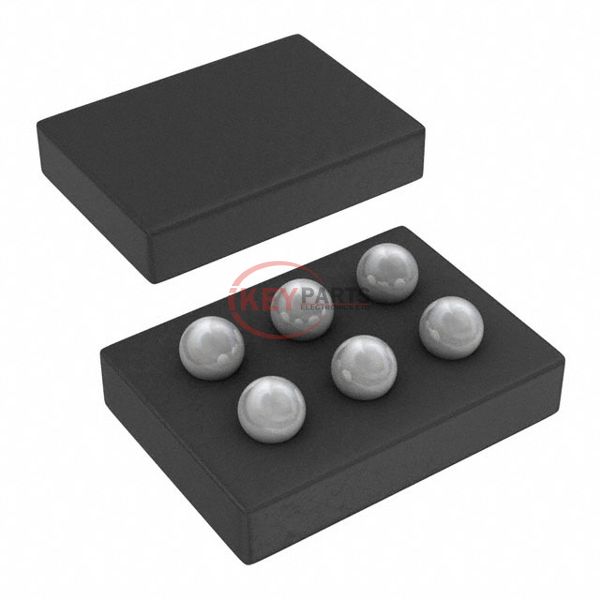

Lmages are for reference only See Product Specitications

Texas Instruments CSD13306W

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD13306W
Description
MOSFET N-CH 12V 3.5A 6DSBGA
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD13306W PDF
CSD13306W Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs10.2mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs11.2 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds1370 pF @ 6 V
FET Feature-
Power Dissipation (Max)1.9W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-DSBGA (1x1.5)
Package / Case6-UFBGA, DSBGA
Request Quote Now
Request Quote Now

We can supply CSD13306W, use the request quote form to request CSD13306W pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD13306W. The price and lead time for CSD13306W depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD13306W. We look forward to working with you to establish long-term relations of cooperation.
