CSD19538Q2

Enlarger

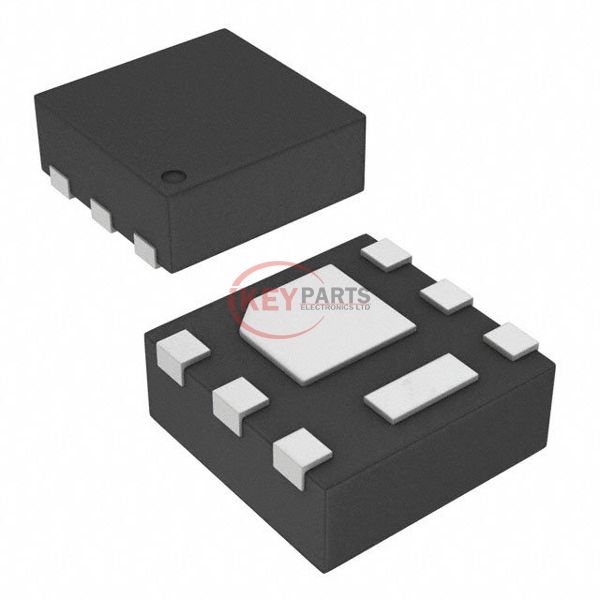

Lmages are for reference only See Product Specitications

Texas Instruments CSD19538Q2

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD19538Q2
Description
MOSFET N-CH 100V 14.4A 6WSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD19538Q2 PDF
CSD19538Q2 Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C14.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs59mOhm @ 5A, 10V
Vgs(th) (Max) @ Id3.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5.6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds454 pF @ 50 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 20.2W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-WSON (2x2)
Package / Case6-WDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply CSD19538Q2, use the request quote form to request CSD19538Q2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD19538Q2. The price and lead time for CSD19538Q2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD19538Q2. We look forward to working with you to establish long-term relations of cooperation.
