TSM260P02CX6 RFG

Enlarger

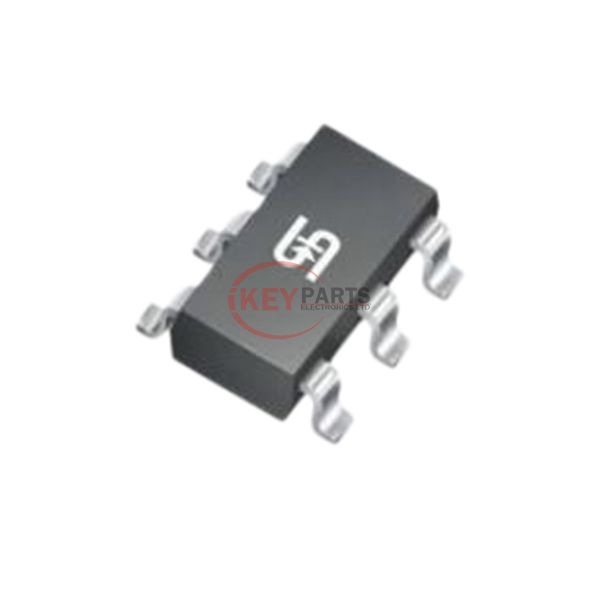

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM260P02CX6 RFG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM260P02CX6 RFG
Description
MOSFET P-CHANNEL 20V 6.5A SOT26
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM260P02CX6 RFG PDF
TSM260P02CX6 RFG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C6.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs26mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs19.5 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds1670 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.56W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-26
Package / CaseSOT-23-6
Request Quote Now
Request Quote Now

We can supply TSM260P02CX6 RFG, use the request quote form to request TSM260P02CX6 RFG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM260P02CX6 RFG. The price and lead time for TSM260P02CX6 RFG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM260P02CX6 RFG. We look forward to working with you to establish long-term relations of cooperation.
