MMBF2201NT1G

Enlarger

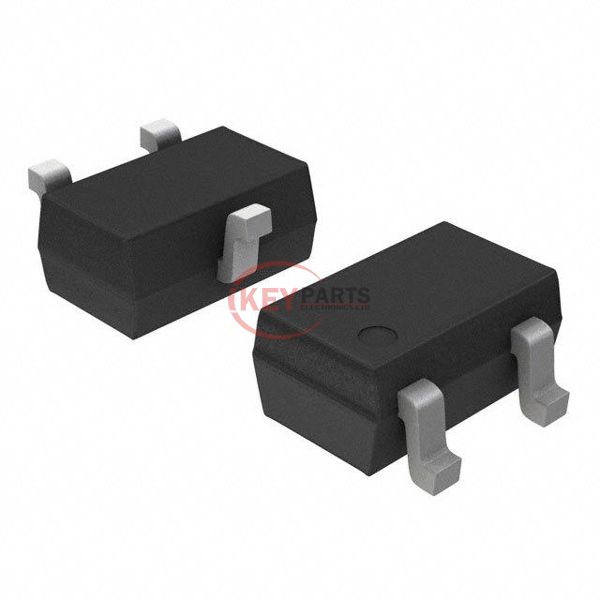

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor MMBF2201NT1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
MMBF2201NT1G
Description
MOSFET N-CH 20V 300MA SC70-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MMBF2201NT1G PDF
In Stock
2147483647
MMBF2201NT1G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1Ohm @ 300mA, 10V
Vgs(th) (Max) @ Id2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds45 pF @ 5 V
FET Feature-
Power Dissipation (Max)150mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70-3 (SOT323)
Package / CaseSC-70, SOT-323
Request Quote Now
Request Quote Now

We can supply MMBF2201NT1G, use the request quote form to request MMBF2201NT1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MMBF2201NT1G. The price and lead time for MMBF2201NT1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MMBF2201NT1G. We look forward to working with you to establish long-term relations of cooperation.
