NTLJF3117PT1G

Enlarger

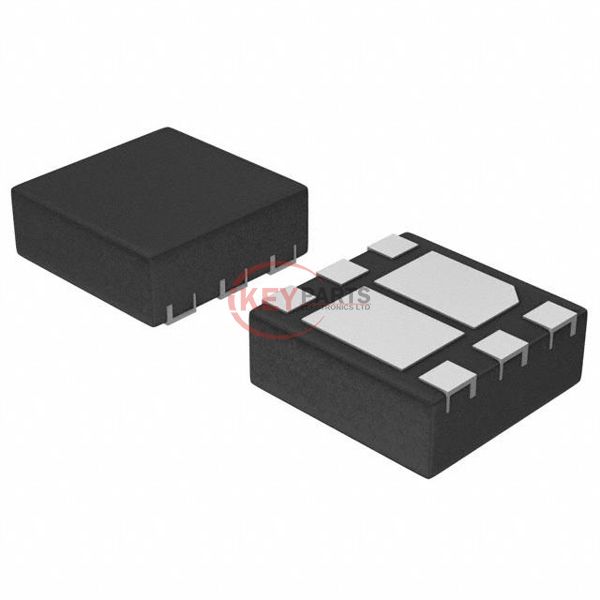

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTLJF3117PT1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTLJF3117PT1G
Description
MOSFET P-CH 20V 2.3A 6WDFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTLJF3117PT1G PDF
In Stock
583
NTLJF3117PT1G Tech Specifications
SeriesµCool™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs100mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.2 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds531 pF @ 10 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)710mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-WDFN (2x2)
Package / Case6-WDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply NTLJF3117PT1G, use the request quote form to request NTLJF3117PT1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTLJF3117PT1G. The price and lead time for NTLJF3117PT1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTLJF3117PT1G. We look forward to working with you to establish long-term relations of cooperation.
