FDWS86068-F085

Enlarger

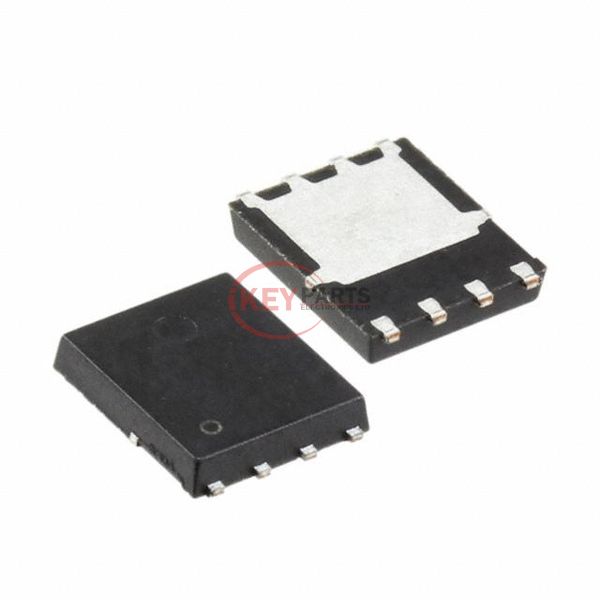

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDWS86068-F085

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDWS86068-F085
Description
MOSFET N-CH 100V 80A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDWS86068-F085 PDF
In Stock
633
FDWS86068-F085 Tech Specifications
SeriesAutomotive, AEC-Q101, PowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs6.4mOhm @ 80A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs43 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2220 pF @ 50 V
FET Feature-
Power Dissipation (Max)214W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (5.1x6.3)
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply FDWS86068-F085, use the request quote form to request FDWS86068-F085 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDWS86068-F085. The price and lead time for FDWS86068-F085 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDWS86068-F085. We look forward to working with you to establish long-term relations of cooperation.
