PMZ950UPELYL

Enlarger

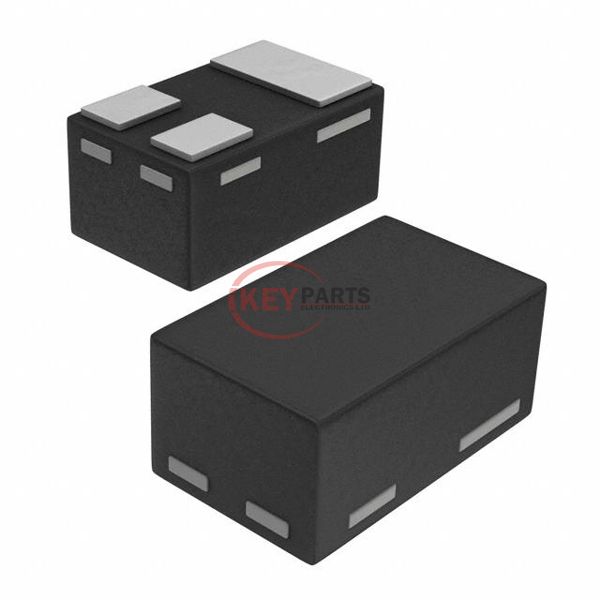

Lmages are for reference only See Product Specitications

Nexperia PMZ950UPELYL

Manufacturer :
Nexperia
Mfr. Part # :
PMZ950UPELYL
Description
MOSFET P-CH 20V 500MA DFN1006-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMZ950UPELYL PDF
PMZ950UPELYL Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs1.4Ohm @ 500mA, 4.5V
Vgs(th) (Max) @ Id950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs2.1 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds43 pF @ 10 V
FET Feature-
Power Dissipation (Max)360mW (Ta), 2.7W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN1006-3
Package / CaseSC-101, SOT-883
Request Quote Now
Request Quote Now

We can supply PMZ950UPELYL, use the request quote form to request PMZ950UPELYL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMZ950UPELYL. The price and lead time for PMZ950UPELYL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMZ950UPELYL. We look forward to working with you to establish long-term relations of cooperation.
