STL6N3LLH6

Enlarger

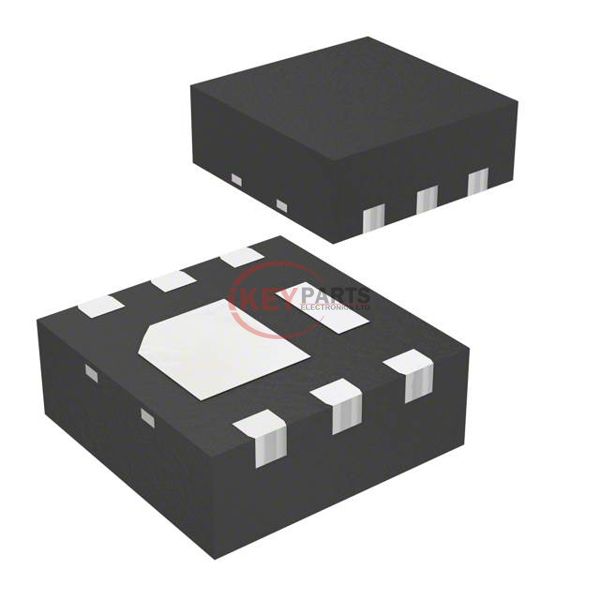

Lmages are for reference only See Product Specitications

STMicroelectronics STL6N3LLH6

Manufacturer :
STMicroelectronics
Mfr. Part # :
STL6N3LLH6
Description
MOSFET N-CH 30V POWERFLAT
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STL6N3LLH6 PDF
In Stock
830
STL6N3LLH6 Tech Specifications
SeriesDeepGATE™, STripFET™ VI
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs25mOhm @ 3A, 10V
Vgs(th) (Max) @ Id1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs3.6 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds283 pF @ 24 V
FET Feature-
Power Dissipation (Max)2.4W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (2x2)
Package / Case6-PowerWDFN
Request Quote Now
Request Quote Now

We can supply STL6N3LLH6, use the request quote form to request STL6N3LLH6 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STL6N3LLH6. The price and lead time for STL6N3LLH6 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STL6N3LLH6. We look forward to working with you to establish long-term relations of cooperation.
