TQM025NB04CR RLG

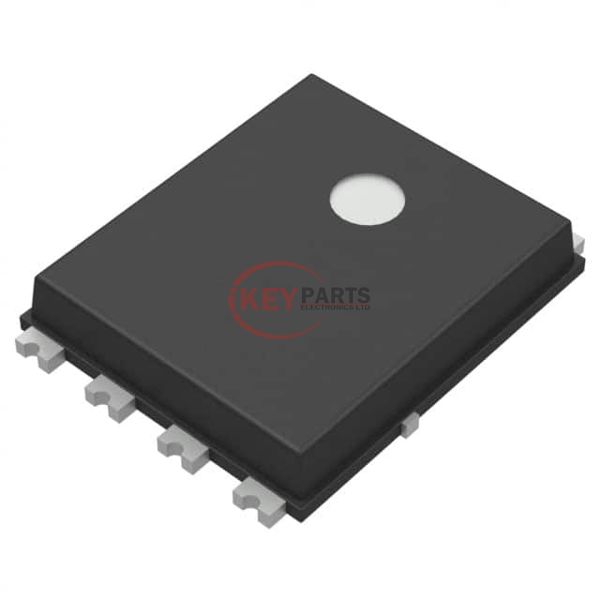

Enlarger

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TQM025NB04CR RLG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TQM025NB04CR RLG
Description
MOSFET N-CH 40V 24A/157A 8PDFNU
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TQM025NB04CR RLG PDF
TQM025NB04CR RLG Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C24A (Ta), 157A (Tc)
Drive Voltage (Max Rds On, Min Rds On)7V, 10V
Rds On (Max) @ Id, Vgs2.5mOhm @ 24A, 10V
Vgs(th) (Max) @ Id3.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs118 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6670 pF @ 20 V
FET Feature-
Power Dissipation (Max)3.1W (Ta), 136W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Supplier Device Package8-PDFNU (5x6)
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply TQM025NB04CR RLG, use the request quote form to request TQM025NB04CR RLG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TQM025NB04CR RLG. The price and lead time for TQM025NB04CR RLG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TQM025NB04CR RLG. We look forward to working with you to establish long-term relations of cooperation.
