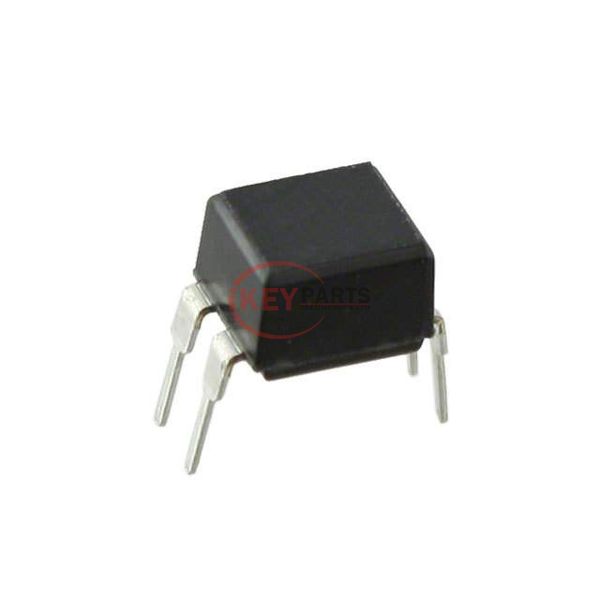

IRFD224PBF

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRFD224PBF

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRFD224PBF
Description
MOSFET N-CH 250V 630MA 4DIP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRFD224PBF PDF
IRFD224PBF Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)250 V
Current - Continuous Drain (Id) @ 25°C630mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.1Ohm @ 380mA, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs14 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds260 pF @ 25 V
FET Feature-
Power Dissipation (Max)1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device Package4-DIP, Hexdip, HVMDIP
Package / Case4-DIP (0.300", 7.62mm)
Request Quote Now
Request Quote Now

We can supply IRFD224PBF, use the request quote form to request IRFD224PBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRFD224PBF. The price and lead time for IRFD224PBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRFD224PBF. We look forward to working with you to establish long-term relations of cooperation.
