RJK1576DPA-00#J5A

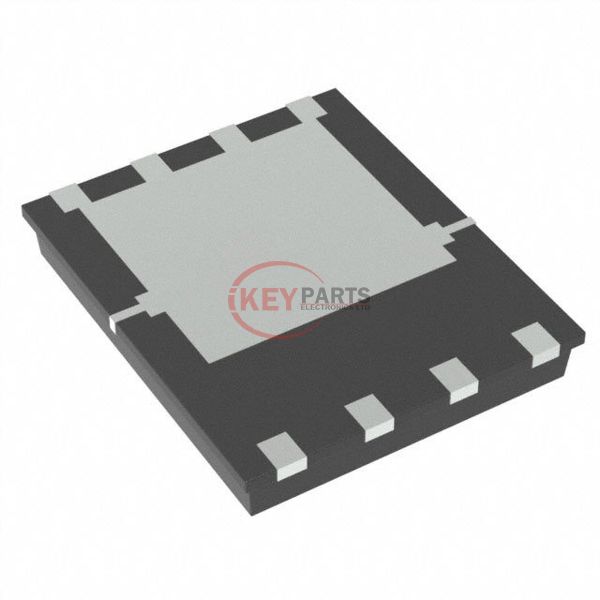

Enlarger

Lmages are for reference only See Product Specitications

Renesas Electronics America RJK1576DPA-00#J5A

Manufacturer :
Renesas Electronics America
Mfr. Part # :
RJK1576DPA-00#J5A
Description
MOSFET N-CH 150V 25A WPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RJK1576DPA-00#J5A PDF
RJK1576DPA-00#J5A Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C25A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs58mOhm @ 12.5A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs19 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds1200 pF @ 25 V
FET Feature-
Power Dissipation (Max)65W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageWPAK(3F) (5x6)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply RJK1576DPA-00#J5A, use the request quote form to request RJK1576DPA-00#J5A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RJK1576DPA-00#J5A. The price and lead time for RJK1576DPA-00#J5A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RJK1576DPA-00#J5A. We look forward to working with you to establish long-term relations of cooperation.
