NVHL020N090SC1

Enlarger

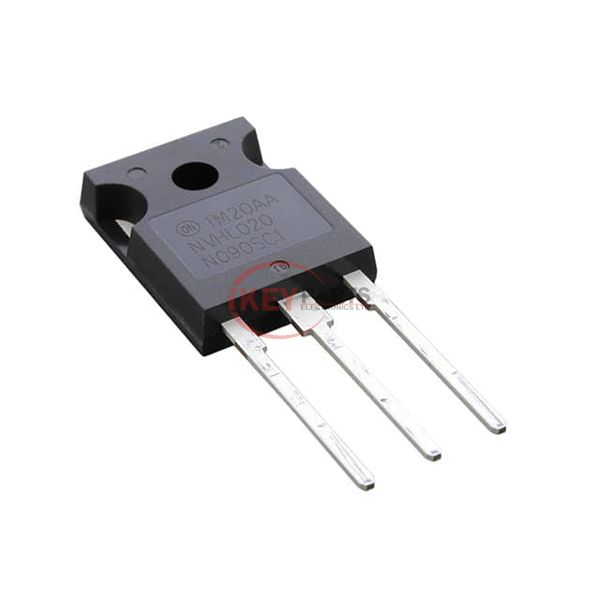

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NVHL020N090SC1

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NVHL020N090SC1
Description
SICFET N-CH 900V 118A TO247-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NVHL020N090SC1 PDF
NVHL020N090SC1 Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)900 V
Current - Continuous Drain (Id) @ 25°C118A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V
Rds On (Max) @ Id, Vgs28mOhm @ 60A, 15V
Vgs(th) (Max) @ Id4.3V @ 20mA
Gate Charge (Qg) (Max) @ Vgs196 nC @ 15 V
Vgs (Max)+19V, -10V
Input Capacitance (Ciss) (Max) @ Vds4415 pF @ 450 V
FET Feature-
Power Dissipation (Max)503W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3 Variant
Request Quote Now
Request Quote Now

We can supply NVHL020N090SC1, use the request quote form to request NVHL020N090SC1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NVHL020N090SC1. The price and lead time for NVHL020N090SC1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NVHL020N090SC1. We look forward to working with you to establish long-term relations of cooperation.
