NTNS3A65PZT5G

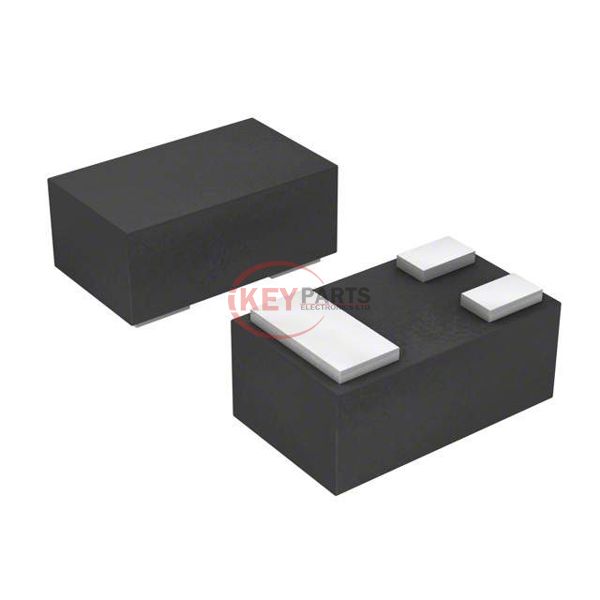

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTNS3A65PZT5G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTNS3A65PZT5G
Description
MOSFET P-CH 20V 281MA SOT883
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTNS3A65PZT5G PDF
NTNS3A65PZT5G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C281mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs1.3Ohm @ 200mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.1 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds44 pF @ 10 V
FET Feature-
Power Dissipation (Max)155mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-883 (XDFN3) (1x0.6)
Package / CaseSC-101, SOT-883
Request Quote Now
Request Quote Now

We can supply NTNS3A65PZT5G, use the request quote form to request NTNS3A65PZT5G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTNS3A65PZT5G. The price and lead time for NTNS3A65PZT5G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTNS3A65PZT5G. We look forward to working with you to establish long-term relations of cooperation.
