IRF9Z14LPBF

Enlarger

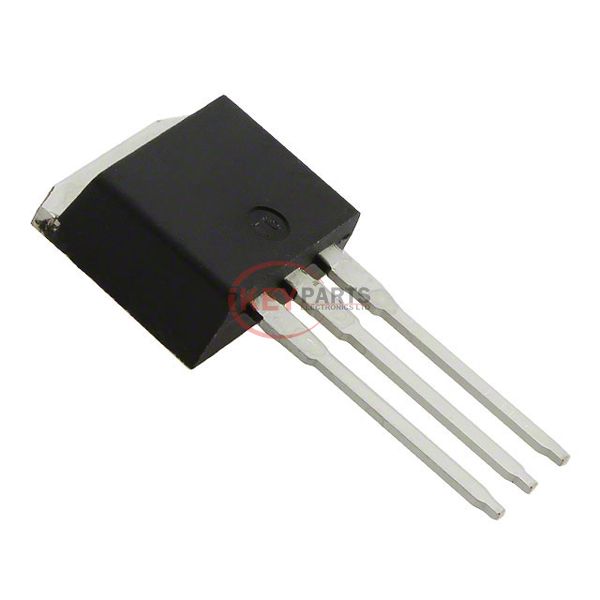

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRF9Z14LPBF

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRF9Z14LPBF
Description
MOSFET P-CH 60V 6.7A I2PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRF9Z14LPBF PDF
IRF9Z14LPBF Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C6.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs500mOhm @ 4A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds270 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.7W (Ta), 43W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI2PAK
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply IRF9Z14LPBF, use the request quote form to request IRF9Z14LPBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF9Z14LPBF. The price and lead time for IRF9Z14LPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRF9Z14LPBF. We look forward to working with you to establish long-term relations of cooperation.
