NTB45N06

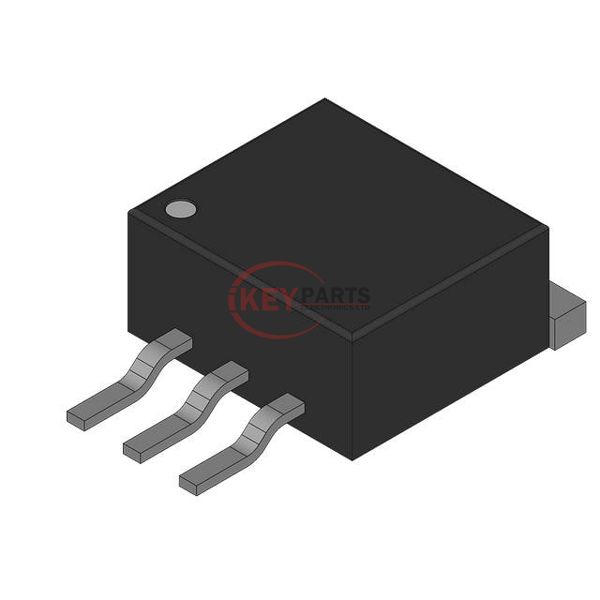

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics NTB45N06

Manufacturer :
Rochester Electronics
Mfr. Part # :
NTB45N06
Description
MOSFET N-CH 60V 45A D2PAK-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTB45N06 PDF
NTB45N06 Tech Specifications
Series-
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C45A (Ta)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs26mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs46 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1725 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.4W (Ta), 125W (Tj)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK-3
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Request Quote Now
Request Quote Now

We can supply NTB45N06, use the request quote form to request NTB45N06 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTB45N06. The price and lead time for NTB45N06 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTB45N06. We look forward to working with you to establish long-term relations of cooperation.
