Series | CoolSiC™ | |
Package | Tube | |
Part Status | Active | |
FET Type | N-Channel | |
Technology | SiCFET (Silicon Carbide) | |
Drain to Source Voltage (Vdss) | 1.2 kV | |
Current - Continuous Drain (Id) @ 25°C | 26A (Tc) | |
Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V | |
Rds On (Max) @ Id, Vgs | 117mOhm @ 8.5A, 18V | |
Vgs(th) (Max) @ Id | 5.7V @ 3.7mA | |
Gate Charge (Qg) (Max) @ Vgs | 21 nC @ 18 V | |
Vgs (Max) | +23V, -7V | |
Input Capacitance (Ciss) (Max) @ Vds | 707 pF @ 800 V | |
FET Feature | - | |
Power Dissipation (Max) | 115W (Tc) | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |

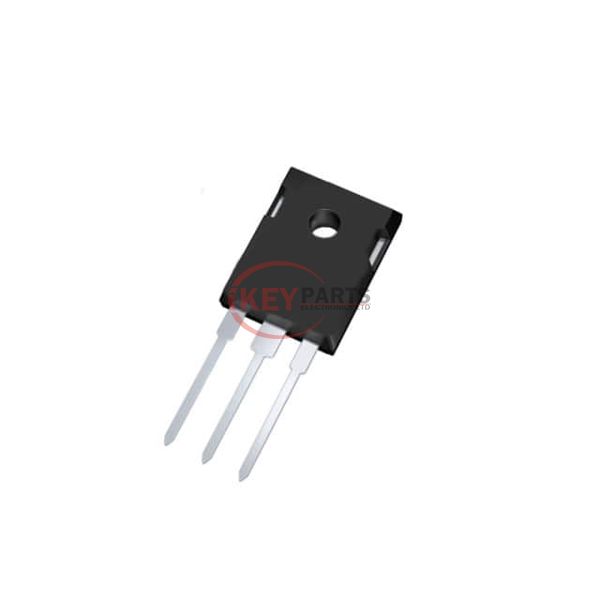

Supplier Device Package | PG-TO247-4-1 | |
Package / Case | TO-247-4 |
We can supply IMZ120R090M1HXKSA1, use the request quote form to request IMZ120R090M1HXKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IMZ120R090M1HXKSA1. The price and lead time for IMZ120R090M1HXKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IMZ120R090M1HXKSA1. We look forward to working with you to establish long-term relations of cooperation.
![]() |
