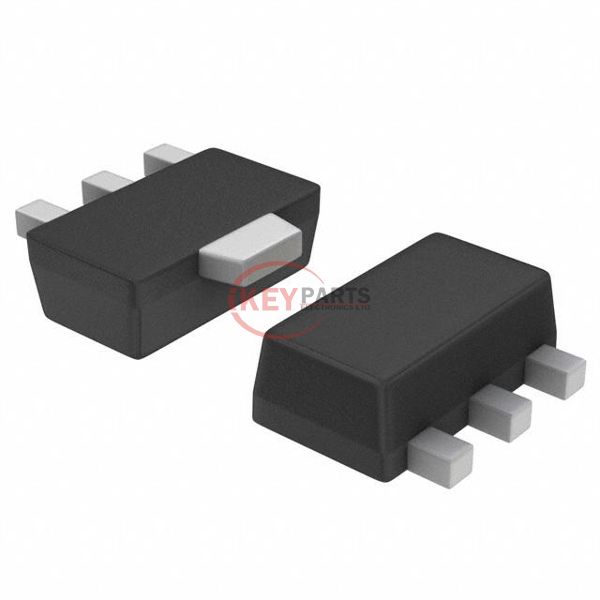

PCP1402-TD-H

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor PCP1402-TD-H

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
PCP1402-TD-H
Description
MOSFET N-CH 250V 1.2A SOT89
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PCP1402-TD-H PDF
PCP1402-TD-H Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)250 V
Current - Continuous Drain (Id) @ 25°C1.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2.4Ohm @ 600mA, 10V
Vgs(th) (Max) @ Id3.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs4.2 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds210 pF @ 20 V
FET Feature-
Power Dissipation (Max)3.5W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-89/PCP-2
Package / CaseTO-243AA
Request Quote Now
Request Quote Now

We can supply PCP1402-TD-H, use the request quote form to request PCP1402-TD-H pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PCP1402-TD-H. The price and lead time for PCP1402-TD-H depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PCP1402-TD-H. We look forward to working with you to establish long-term relations of cooperation.
