IPN80R750P7ATMA1

Enlarger

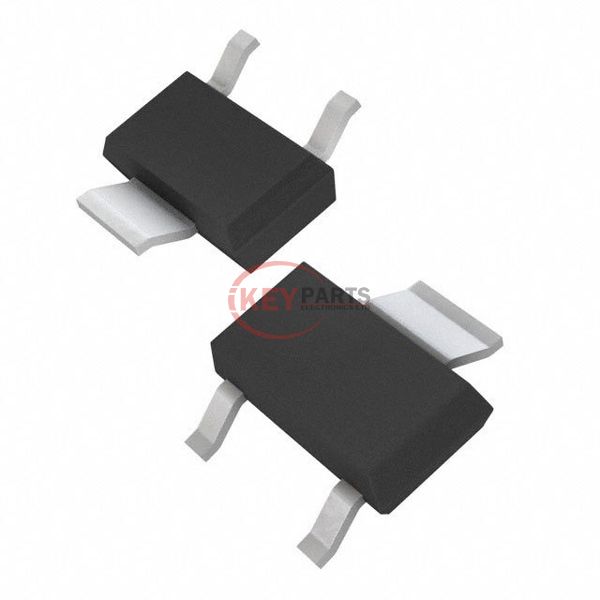

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPN80R750P7ATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPN80R750P7ATMA1
Description
MOSFET N-CH 800V 7A SOT223
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPN80R750P7ATMA1 PDF
In Stock
8975
IPN80R750P7ATMA1 Tech Specifications
SeriesCoolMOS™ P7
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs750mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id3.5V @ 140µA
Gate Charge (Qg) (Max) @ Vgs17 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds460 pF @ 500 V
FET Feature-
Power Dissipation (Max)7.2W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SOT223
Package / CaseTO-261-3
Request Quote Now
Request Quote Now

We can supply IPN80R750P7ATMA1, use the request quote form to request IPN80R750P7ATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPN80R750P7ATMA1. The price and lead time for IPN80R750P7ATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPN80R750P7ATMA1. We look forward to working with you to establish long-term relations of cooperation.
