ETZ950N22P70HPSA1

Enlarger

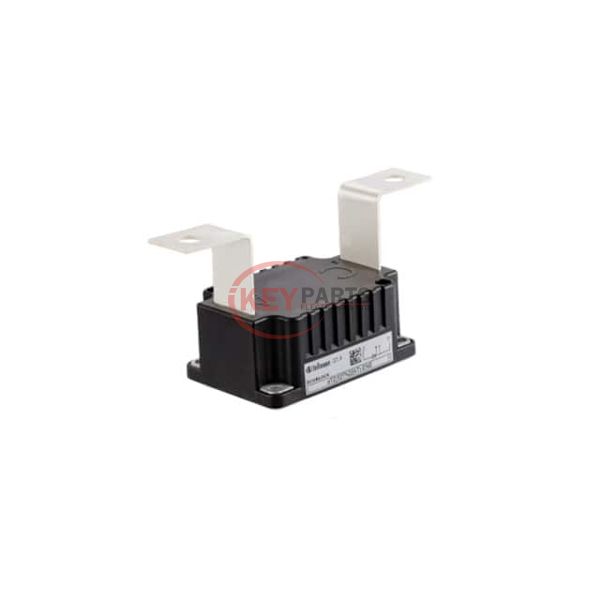

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) ETZ950N22P70HPSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
ETZ950N22P70HPSA1
Description
SCR 2.2KV 1000A PB70ECO-1
Catalog
Thyristors - SCRs
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ETZ950N22P70HPSA1 PDF
ETZ950N22P70HPSA1 Tech Specifications
Series-
PackageTray
Part StatusActive
Voltage - Off State2.2 kV
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - Gate Trigger (Igt) (Max)250 mA
Voltage - On State (Vtm) (Max)1.75 V
Current - On State (It (AV)) (Max)923 A
Current - On State (It (RMS)) (Max)1000 A
Current - Hold (Ih) (Max)500 mA
Current - Off State (Max)-
Current - Non Rep. Surge 50, 60Hz (Itsm)30000A @ 50Hz
SCR TypeStandard Recovery
Operating Temperature135°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageBG-PB70ECO-1
Request Quote Now
Request Quote Now

We can supply ETZ950N22P70HPSA1, use the request quote form to request ETZ950N22P70HPSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ETZ950N22P70HPSA1. The price and lead time for ETZ950N22P70HPSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ETZ950N22P70HPSA1. We look forward to working with you to establish long-term relations of cooperation.
