NTE5589

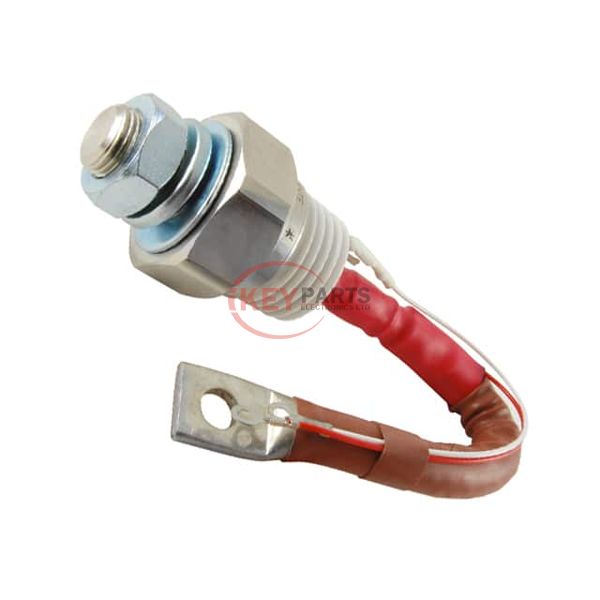

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE5589

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE5589
Description
SCR 1.2KV 550A TO118
Catalog
Thyristors - SCRs
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE5589 PDF
In Stock
970
NTE5589 Tech Specifications
Series-
PackageBag
Part StatusActive
Voltage - Off State1.2 kV
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - Gate Trigger (Igt) (Max)150 mA
Voltage - On State (Vtm) (Max)1.4 V
Current - On State (It (AV)) (Max)350 A
Current - On State (It (RMS)) (Max)550 A
Current - Hold (Ih) (Max)-
Current - Off State (Max)30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)9100A, 10000A
SCR TypeStandard Recovery
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeStud Mount
Package / CaseTO-209AE, TO-118-4, Stud
Supplier Device PackageTO-118
Request Quote Now
Request Quote Now

We can supply NTE5589, use the request quote form to request NTE5589 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE5589. The price and lead time for NTE5589 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE5589. We look forward to working with you to establish long-term relations of cooperation.
