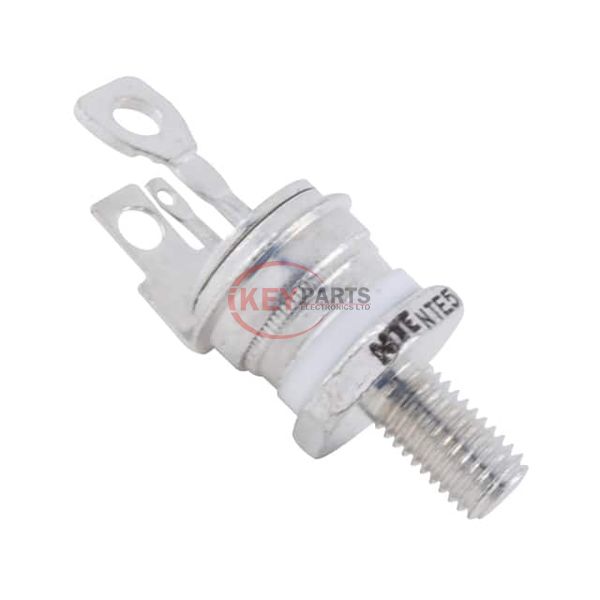

NTE5566

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE5566

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE5566
Description
SCR 600V 35A TO48
Catalog
Thyristors - SCRs
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE5566 PDF
In Stock
996
NTE5566 Tech Specifications
Series-
PackageBag
Part StatusActive
Voltage - Off State600 V
Voltage - Gate Trigger (Vgt) (Max)-
Current - Gate Trigger (Igt) (Max)30 mA
Voltage - On State (Vtm) (Max)1.6 V
Current - On State (It (AV)) (Max)-
Current - On State (It (RMS)) (Max)35 A
Current - Hold (Ih) (Max)50 mA
Current - Off State (Max)2 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)300A @ 60Hz
SCR TypeStandard Recovery
Operating Temperature-40°C ~ 150°C
Mounting TypeStud Mount
Package / CaseTO-208AA, TO-48-3, Stud
Supplier Device PackageTO-48 Isolated Stud
Request Quote Now
Request Quote Now

We can supply NTE5566, use the request quote form to request NTE5566 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE5566. The price and lead time for NTE5566 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE5566. We look forward to working with you to establish long-term relations of cooperation.
