NTE5561

Enlarger

Lmages are for reference only See Product Specitications

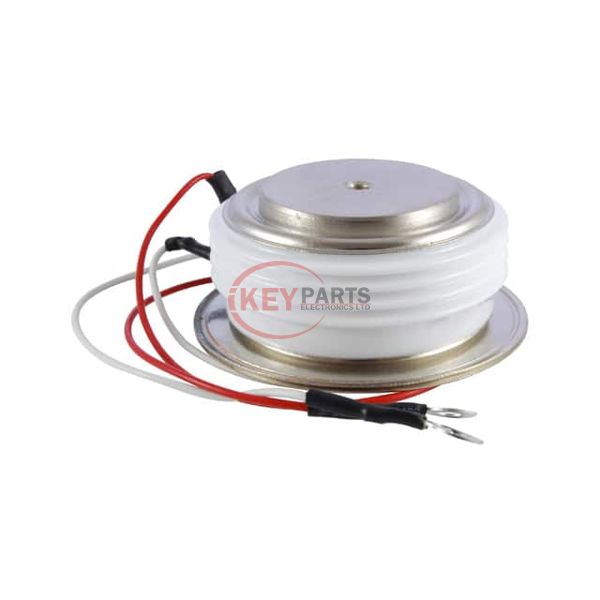

NTE Electronics, Inc. NTE5561

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE5561
Description
SCR 1.6KV 16.4KA TO200AC
Catalog
Thyristors - SCRs
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE5561 PDF
In Stock
335
NTE5561 Tech Specifications
Series-
PackageBag
Part StatusActive
Voltage - Off State1.6 kV
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - Gate Trigger (Igt) (Max)200 mA
Voltage - On State (Vtm) (Max)1.75 V
Current - On State (It (AV)) (Max)820 A
Current - On State (It (RMS)) (Max)16.4 kA
Current - Hold (Ih) (Max)1 A
Current - Off State (Max)60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)11500A, 12650A
SCR TypeStandard Recovery
Operating Temperature-40°C ~ 125°C
Mounting TypeChassis Mount
Package / CaseTO-200AC, B-PUK
Supplier Device PackageTO-200AC
Request Quote Now
Request Quote Now

We can supply NTE5561, use the request quote form to request NTE5561 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE5561. The price and lead time for NTE5561 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE5561. We look forward to working with you to establish long-term relations of cooperation.
