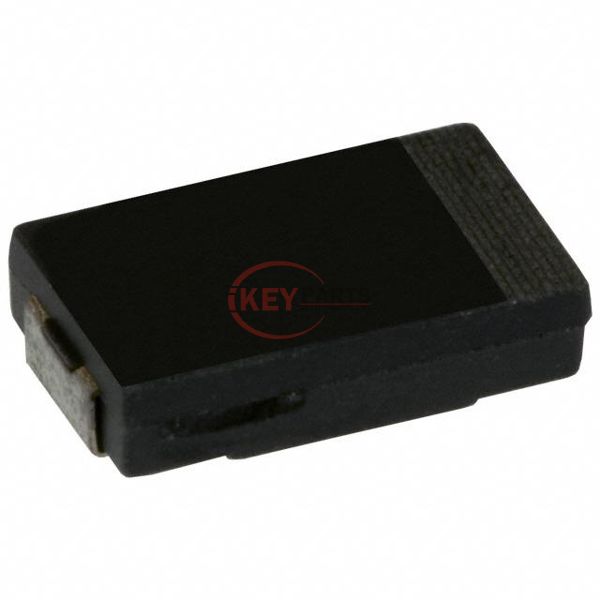

EEF-CD1B150R

Enlarger

Lmages are for reference only See Product Specitications

Panasonic EEF-CD1B150R

Manufacturer :
Panasonic
Mfr. Part # :
EEF-CD1B150R
Description
CAP ALUM POLY 15UF 20% 12.5V SMD
Catalog
Aluminum - Polymer Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EEF-CD1B150R PDF
EEF-CD1B150R Tech Specifications
SeriesSP-Cap CD
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
TypePolymer
Capacitance15 µF
Tolerance±20%
Voltage - Rated12.5 V
ESR (Equivalent Series Resistance)50mOhm
Lifetime @ Temp.1000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency-
Ripple Current @ High Frequency1.3 A @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)0.075" (1.90mm)
Surface Mount Land Size0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting TypeSurface Mount
Package / Case2917 (7343 Metric)
Request Quote Now
Request Quote Now

We can supply EEF-CD1B150R, use the request quote form to request EEF-CD1B150R pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EEF-CD1B150R. The price and lead time for EEF-CD1B150R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EEF-CD1B150R. We look forward to working with you to establish long-term relations of cooperation.
