EEH-AZT1J560B

Enlarger

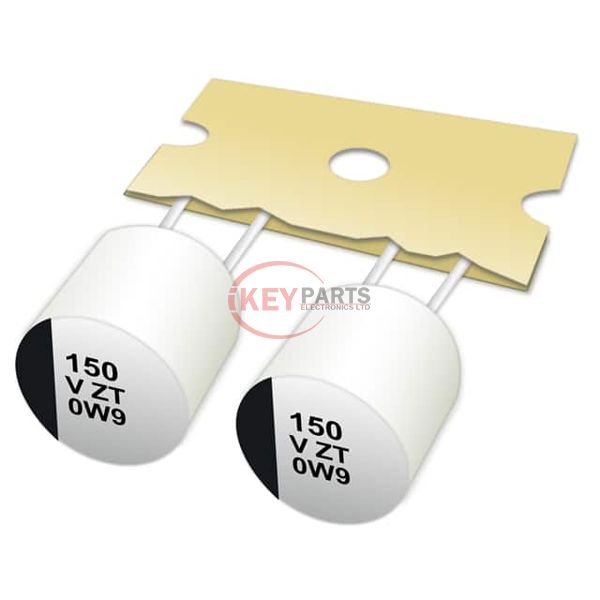

Lmages are for reference only See Product Specitications

Panasonic EEH-AZT1J560B

Manufacturer :
Panasonic
Mfr. Part # :
EEH-AZT1J560B
Description
CAP ALUM POLY 47UF 20% 63V T/H
Catalog
Aluminum - Polymer Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EEH-AZT1J560B PDF
EEH-AZT1J560B Tech Specifications
SeriesZT
PackageCut Tape (CT)Tape & Box (TB)
Part StatusActive
TypeHybrid
Capacitance56 µF
Tolerance±20%
Voltage - Rated63 V
ESR (Equivalent Series Resistance)25mOhm
Lifetime @ Temp.4000 Hrs @ 125°C
Operating Temperature-55°C ~ 125°C
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency420 mA @ 100 Hz
Ripple Current @ High Frequency2.8 A @ 100 kHz
Impedance-
Lead Spacing0.197" (5.00mm)
Size / Dimension0.394" Dia (10.00mm)
Height - Seated (Max)0.413" (10.50mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
Request Quote Now
Request Quote Now

We can supply EEH-AZT1J560B, use the request quote form to request EEH-AZT1J560B pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EEH-AZT1J560B. The price and lead time for EEH-AZT1J560B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EEH-AZT1J560B. We look forward to working with you to establish long-term relations of cooperation.
