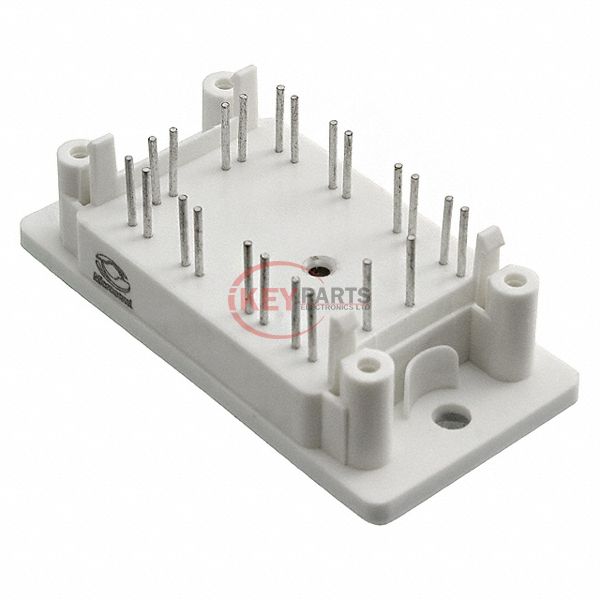

APTGT75H60T2G

Enlarger

Lmages are for reference only See Product Specitications

Microsemi APTGT75H60T2G

Manufacturer :
Microsemi
Mfr. Part # :
APTGT75H60T2G
Description
IGBT MODULE 600V 100A 250W SP2
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APTGT75H60T2G PDF
APTGT75H60T2G Tech Specifications
Series-
PackageBulk
Part StatusActive
IGBT TypeTrench Field Stop
ConfigurationFull Bridge Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)100 A
Power - Max250 W
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 75A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce4.62 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP2
Supplier Device PackageSP2
Request Quote Now
Request Quote Now

We can supply APTGT75H60T2G, use the request quote form to request APTGT75H60T2G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTGT75H60T2G. The price and lead time for APTGT75H60T2G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTGT75H60T2G. We look forward to working with you to establish long-term relations of cooperation.
