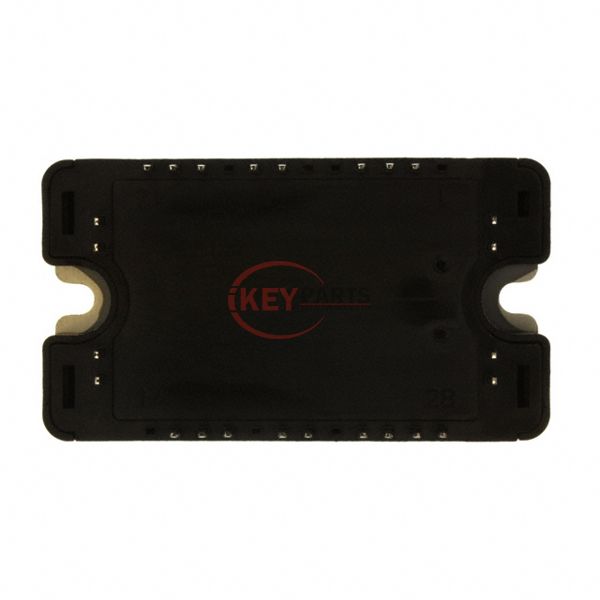

APTCV90TL12T3G

Enlarger

Lmages are for reference only See Product Specitications

Microsemi APTCV90TL12T3G

Manufacturer :
Microsemi
Mfr. Part # :
APTCV90TL12T3G
Description
IGBT MODULE 1200V 80A 280W SP3
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APTCV90TL12T3G PDF
APTCV90TL12T3G Tech Specifications
Series-
PackageBulk
Part StatusObsolete
IGBT TypeTrench Field Stop
ConfigurationThree Level Inverter - IGBT, FET
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)80 A
Power - Max280 W
Vce(on) (Max) @ Vge, Ic2.2V @ 15V, 50A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce2.77 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP3
Supplier Device PackageSP3
Request Quote Now
Request Quote Now

We can supply APTCV90TL12T3G, use the request quote form to request APTCV90TL12T3G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTCV90TL12T3G. The price and lead time for APTCV90TL12T3G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTCV90TL12T3G. We look forward to working with you to establish long-term relations of cooperation.
