APTGF90H60T3G

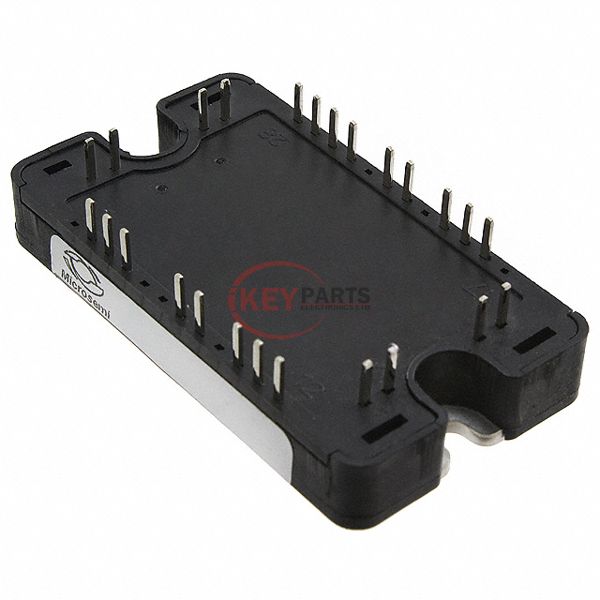

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APTGF90H60T3G

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APTGF90H60T3G
Description
IGBT MODULE 600V 120A 416W SP3
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APTGF90H60T3G PDF
In Stock
695
APTGF90H60T3G Tech Specifications
Series-
PackageBulk
Part StatusObsolete
IGBT TypeNPT
ConfigurationFull Bridge Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)120 A
Power - Max416 W
Vce(on) (Max) @ Vge, Ic2.45V @ 15V, 100A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce4.4 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP3
Supplier Device PackageSP3
Request Quote Now
Request Quote Now

We can supply APTGF90H60T3G, use the request quote form to request APTGF90H60T3G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTGF90H60T3G. The price and lead time for APTGF90H60T3G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTGF90H60T3G. We look forward to working with you to establish long-term relations of cooperation.
