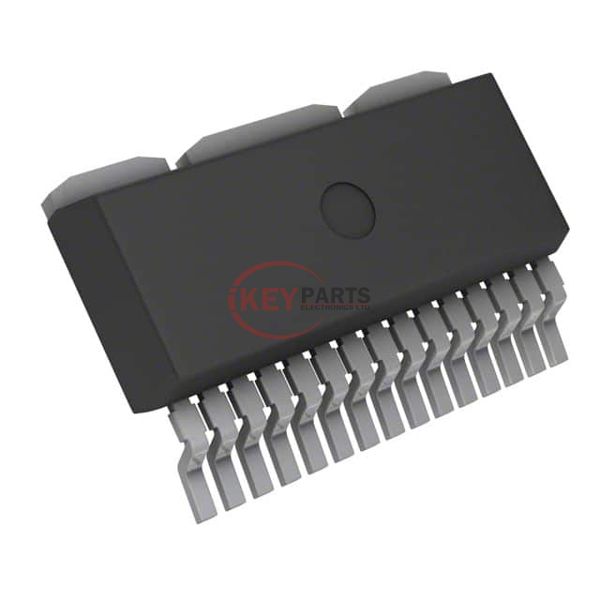

BTS7750GP

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BTS7750GP

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BTS7750GP
Description
IC TRILITHIC SWITCH D2PAK-15
Catalog
PMIC - Full, Half-Bridge Drivers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BTS7750GP PDF
BTS7750GP Tech Specifications
SeriesTrilithIC™
PackageTape & Reel (TR)
Part StatusObsolete
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologyDMOS
Rds On (Typ)45mOhm LS, 70mOhm HS
Current - Output / Channel-
Current - Peak Output12A
Voltage - Supply1.8V ~ 42V
Voltage - Load1.8V ~ 42V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesStatus Flag
Fault ProtectionESD, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / CaseTO-263-18 (15 Leads + 3 Tabs)
Supplier Device PackageP-TO263-15-1
Request Quote Now
Request Quote Now

We can supply BTS7750GP, use the request quote form to request BTS7750GP pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BTS7750GP. The price and lead time for BTS7750GP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BTS7750GP. We look forward to working with you to establish long-term relations of cooperation.
