TFS763HG

Enlarger

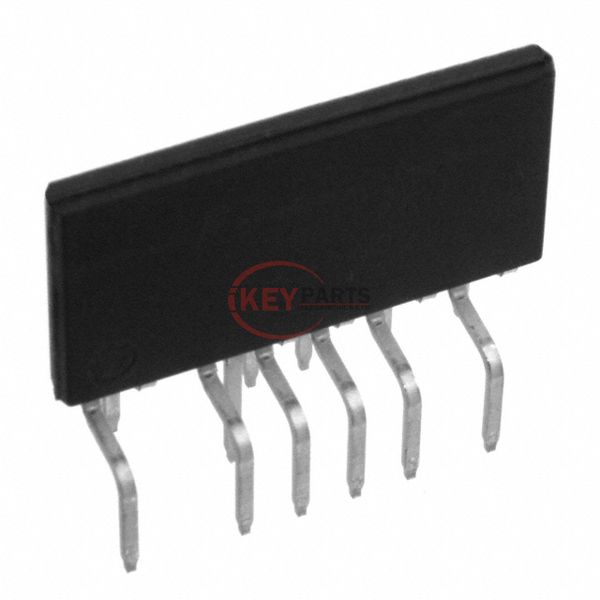

Lmages are for reference only See Product Specitications

Power Integrations TFS763HG

Manufacturer :
Power Integrations
Mfr. Part # :
TFS763HG
Description
IC PWR SUPPLY CTLR 388W ESIP-16
Catalog
PMIC - AC DC Converters, Offline Switchers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TFS763HG PDF
In Stock
630
TFS763HG Tech Specifications
SeriesHiperTFS®
PackageTube
Part StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown530V, 725V
TopologyFlyback, Forward
Voltage - Start Up12.1 V
Voltage - Supply (Vcc/Vdd)11.1V ~ 13.4V
Duty Cycle70%
Frequency - Switching66kHz
Power (Watts)388 W
Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage, Short Circuit
Control FeaturesEN
Operating Temperature-40°C ~ 150°C (TJ)
Package / Case16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Supplier Device Package16-eSIPB
Mounting TypeThrough Hole
Request Quote Now
Request Quote Now

We can supply TFS763HG, use the request quote form to request TFS763HG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TFS763HG. The price and lead time for TFS763HG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TFS763HG. We look forward to working with you to establish long-term relations of cooperation.
